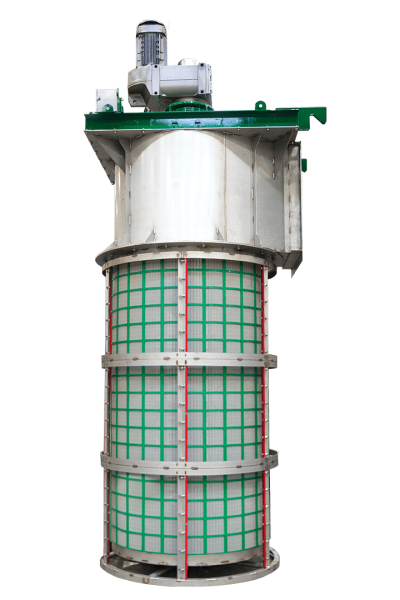

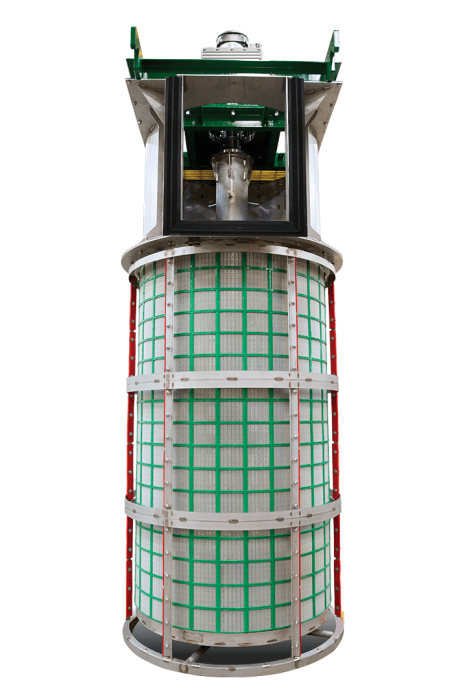

G-Vault® Complete Interstage Unit

The G-Vault® Complete Interstage Unit serves as the new standard of interstage screening in loaded Carbon and Resin circuits, unique to gold recovery.

Our latest innovation employs a modular approach wherein a screen surface is combined with a robust support structure that can be connected with ease.

Non-blinding Trilogy screens can withstand higher temperatures and feature tapered openings and increased open area. These non-blinding and abrasion resistant properties result in a screen with higher throughput, increased life, and less maintenance. All of which lead to more efficient recovery.

Prioritizing HSE, Derrick has focused the G-Vault design on operator safety, utilizing a compression seal drain on the bottom of the unit, eliminating unnecessary moving parts. An optional draft tube, operating on a standalone drive system accessible from the top of the unit, can be incorporated for pumping applications. Additionally, each screen on the G-Vault unit can be easily removed while connected to the launder due to its modular design – all of which lead to a reduction in working under suspended loads.

Related Documents

G-Vault® Urethane Interstage Screen Brochure
G-Vault® Complete Interstage Unit Brochure
DC_G-Vault_DIS180
DC_G-Vault_DIS152
DC_G-Vault_DIS128
G-Vault

Urethane Interstage Screen Replacement

The New Standard of Operation for CIL/CIP and RIL/RIP

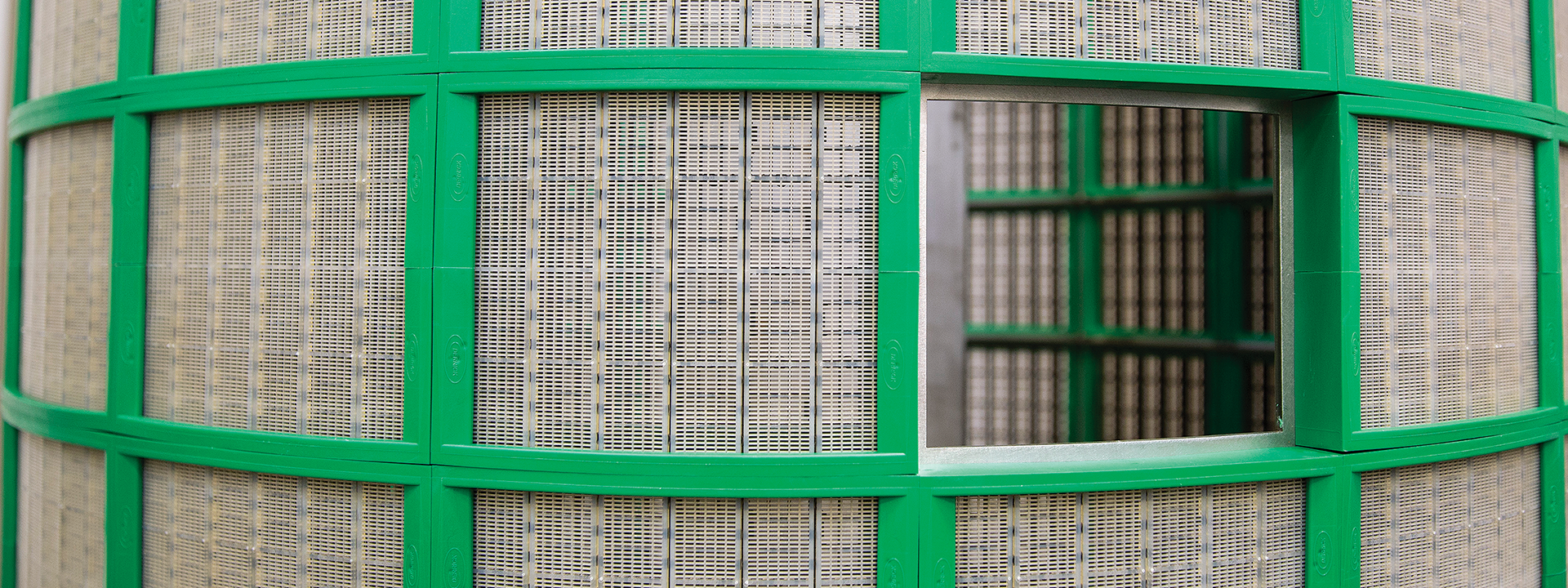

The Derrick G-Vault® Urethane Interstage Screen is a direct bolt-in interstage screen replacement that utilizes Derrick’s patented urethane screen surface technology and serves as a welcome alternative to traditional stainless-steel wedge wire screens.

The G-Vault screens employ a modular approach where the screen surface is combined with a robust support structure. Each screen on the G-Vault can be easily removed while connected to the launder due to this modular design.

The combination of our urethane’s abrasion resistant properties and non-blinding technology results in screen systems with significantly higher throughput, increased life, less maintenance, and less tank bypass. Multiple basket sizes are available with screens ranging from 500 to 1200 micron apertures.

Derrick Exclusive Technology

  • Increased capacities
  • Accurate cut points
  • Decrease in carbon losses
  • Decrease in tank bypass
  • Decrease in maintenance of interstage units
  • Reduction of waste to tails
  • More consistent CIL/CIP operations
  • HSE Improvements
Featured

Documents

CS236
Case Study 236
Derrick® G-Vault™ Interstage Screen offers Dramatic Payback
  • Derrick’s leading-edge shale shaker technology allowed for an overall mud cost savings of 12%
  • Over $51,000 saved during the course of 34 days of drilling
Read More
CS238
Case Study 238
Derrick® G-Vault® technology outperforms wedge wire screens at Oceana Gold’s Haile Gold Mine’s CIL circuit
  • More reliable performance
  • Lower maintenance increases uptime
  • Complete CIL Retrofit
Read More
AdvancementsInInterstageScreening_WhitePaper
White Paper
Advancements in Interstage Screening Using Synthetic Media to Improve Performance at Nevada Gold Mines Resin In Leach Facility.
  • Dilution cost savings of $51,000 per well
  • Annual dilution savings projection of $1.8M for 36 well program
  • Drilling time per production interval decreased 21%
Read More

Discover More About the G-Vault Urethane Interstage Screen

Contact a Derrick representative for more information!
Discover More

Founded by H. William Derrick Jr. in 1951, Derrick Corporation was created to solve some of the most challenging mechanical separation needs of the Mining Industry. At the heart of our present-day offering resides the Integrated Vibratory Motor which was invented by our founder and gave life to an entire line of innovative separation technology. To this day, our pioneering spirit pulses through the organization and inspires development of our leading-edge solutions.
